Cable approved by:

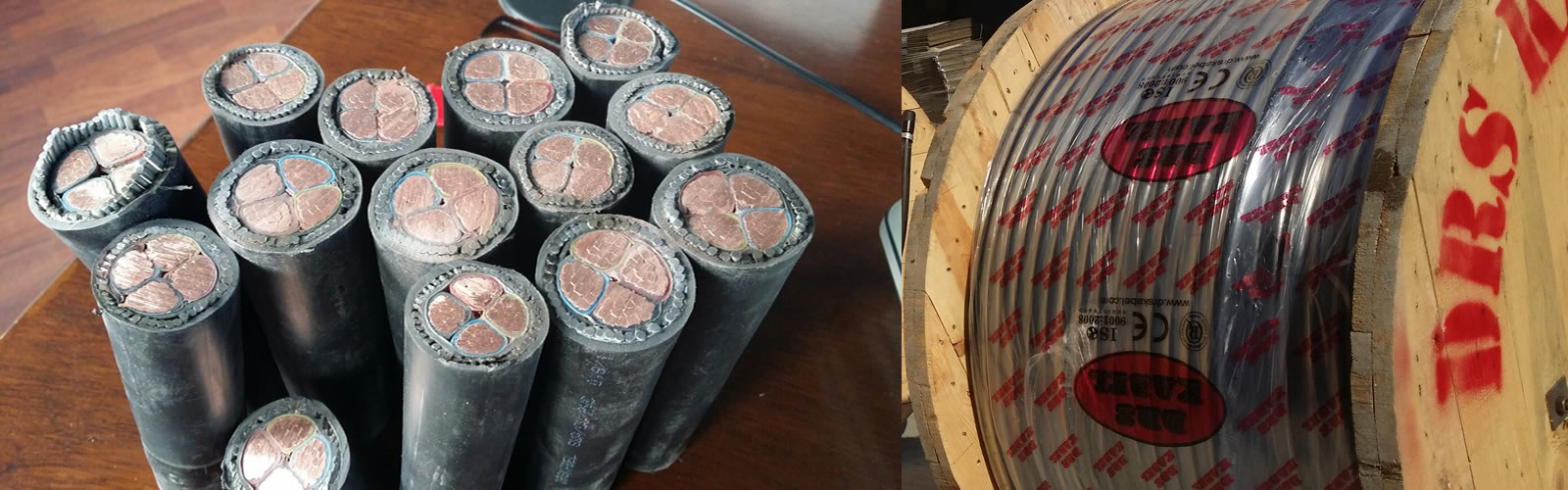

DRSKABEL Specification: SWA ARMOURED CABLES


4x1,5 SWA ARMORED SOLID
Cross Section :4x1,5mm2 N2XRY (YXZ2V-U)
Voltage :0,6/1kV (1,2kV)
Diameter :13(mm)
Weight :340(kg/km)

Download Detail


4x1,5 4x1,5 SWA ARMORED STRANDED
Cross Section :4x1,5mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :13(mm)
Weight :340(kg/km)

Download Detail


4x2,5 SWA ARMORED SOLID
Cross Section :4x2,5mm2 N2XRY (YXZ2V-U))
Voltage :0,6/1kV (1,2kV)
Diameter :13,9(mm)
Weight :412(kg/km)

Download Detail


4x2,5 SWA ARMORED STRANDED
Cross Section :4x2,5mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :13,9(mm)
Weight :434(kg/km)

Download Detail



4x4 SWA ARMORED
Cross Section :4x4mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :15,6(mm)
Weight :521(kg/km)

Download Detail


4x6 SWA ARMORED
Cross Section :4x6mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :18,4(mm)
Weight :807(kg/km)

Download Detail


4x10 SWA ARMORED
Cross Section :4x10mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :20,3(mm)
Weight :1.037(kg/km)

Download Detail


4x16 SWA ARMORED
Cross Section :4x16mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :23,2(mm)
Weight :1.500(kg/km)

Download Detail



4x25 SWA ARMORED
Cross Section :4x25mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :26,6(mm)
Weight :2.021(kg/km)

Download Detail


4x35 SWA ARMORED
Cross Section :4x35mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :29,9(mm)
Weight :2.582(kg/km)

Download Detail


4x50 SWA ARMORED
Cross Section :4x50mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :31(mm)
Weight :2.766(kg/km)

Download Detail


4x70 SWA ARMORED
Cross Section :4x70mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :36,9(mm)
Weight :3.987(kg/km)

Download Detail



4x95 SWA ARMORED
Cross Section :4x95mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :40,5(mm)
Weight :5.084(kg/km)

Download Detail


4x120 SWA ARMORED
Cross Section :4x120mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :47,3(mm)
Weight :6.622(kg/km)

Download Detail


4x150 SWA ARMORED
Cross Section :4x150mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :49,6(mm)
Weight :7.947(kg/km)

Download Detail


4x185 SWA ARMORED
Cross Section :4x185mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :54(mm)
Weight :9.582(kg/km)

Download Detail



4x240 SWA ARMORED
Cross Section :4x240mm2 N2XRY (YXZ2V-R)
Voltage :0,6/1kV (1,2kV)
Diameter :60(mm)
Weight :12.078(kg/km)

Download Detail
